Mô tả

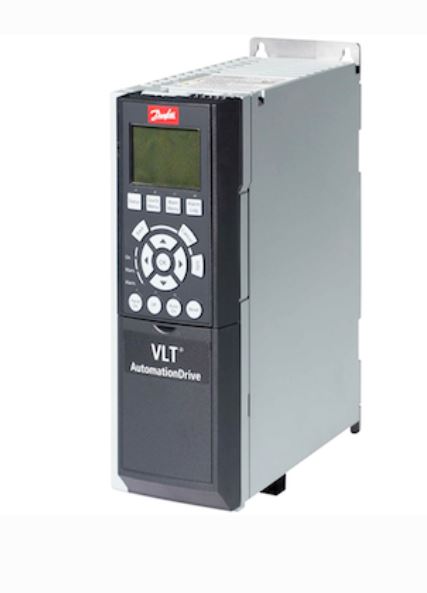

iến tần Danfoss VLT® Automation Drive FC302-15.0Kw – C/N: 132H7369
FC-302P15KT5E20H2BGXXXXSXXXXA4BXCXXXXD0
VLT® AutomationDrive FC 300
15 KW / 20 HP, 380 – 500 VAC,
IP20 / Chassis, RFI Filter,
Brake chopper, Graphical LCP,
DeviceNet MCA 104, MCB-107 24V DC backup
CHARACTERISTIC – C/N: 132H7369 |
VALUE |
|---|---|
| PRODUCT GROUP | (FC-) VLT® AutomationDrive FC- |
| SERIES | (302) 302 |
| POWER RATING | (P15K) 15 KW / 20 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (5) 380 – 500 VAC |
| ENCLOSURE | (E20) IP20 / Chassis |
| RFI FILTER | (H2) RFI Filter |
| BRAKE – SAFE STOP | (B) Brake chopper |
| LCP (C/N: 132H7369) | (G) Graphical Loc. Cont. Panel |
| COATING PCB | (X) Not coated PCB |
| MAINS OPTION | (X) No Mains Option |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release set. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (A4) DeviceNet MCA 104 |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (D0) MCA-107 24V DC backup |
| FRAME SIZE (C/N: 132H7369) | B3 |
| TYPECODE PART 1 | FC-302P15KT5E20H2BGX |
| TYPECODE PART 2 | XXXSXXXXA4BXCXXXXD0 |
| PRODUCT CATALOG | Global (Standard) |
| VENDOR | Cannot Determine Vendor |
| CALCULATED GROSS WEIGHT | 11.81 kg |
| CALCULATED NET WEIGHT | 10.84 kg |
